Next Generation Circular Saw
Circular Saw XGT® 40V Max

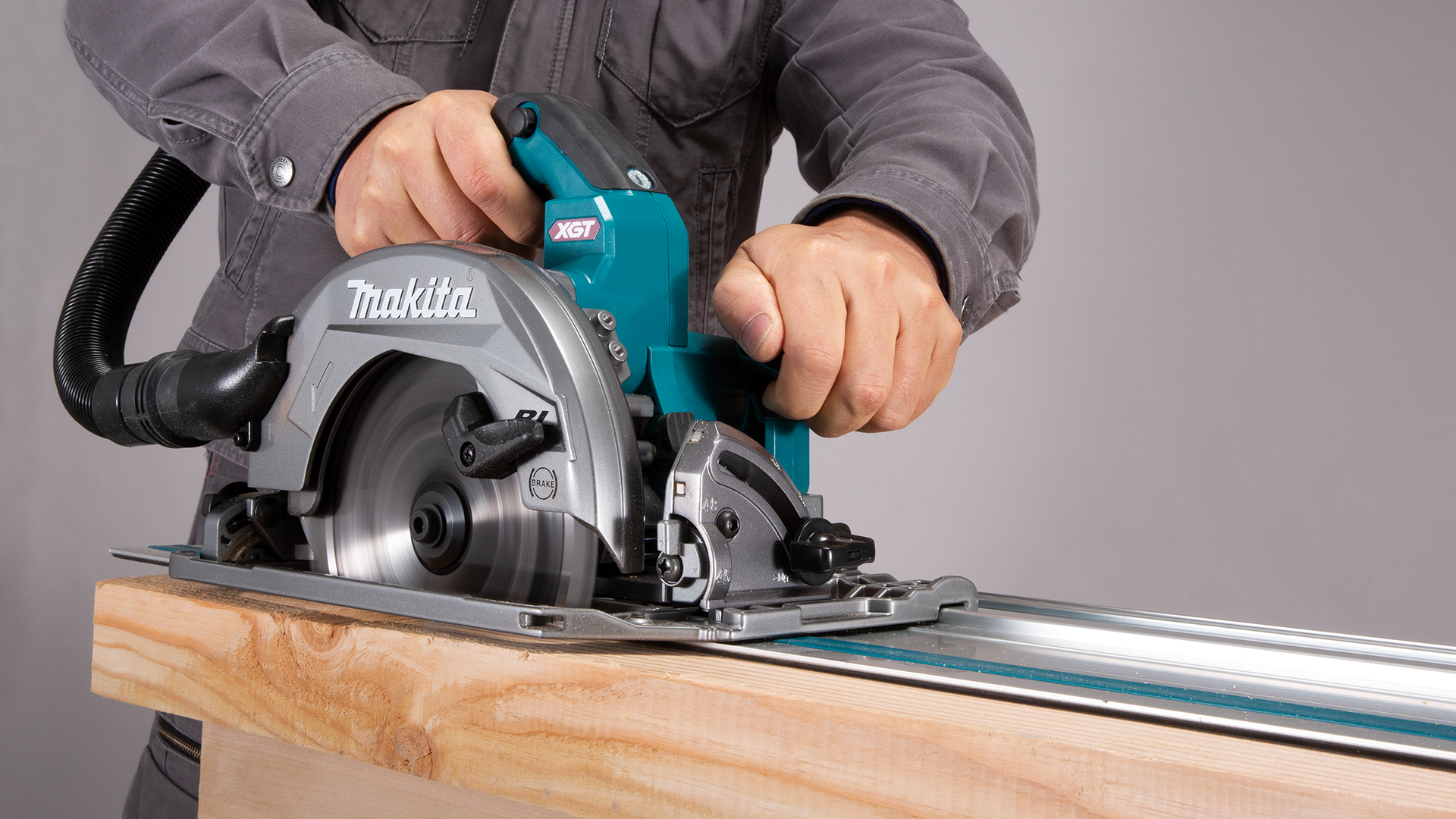

The HS004G is a powerful yet lightweight circular saw that offers the fast cutting and ease of operation previously reserved for corded tools.
The HS004G has a large cutting capacity: 62,5 mm at a 90 degree angle and can reach a No Load Speed of 6000 rpm. For increased productivity and safety, the machine features a soft start function, for smooth start-ups, and an electric brake. It is compatible with a guide rail without an adapter making the cutting precise in addition to being fast.
Safe And Convenient Working
This circular saw incorporates a range of different technologies to aid in safe use Automatic torque Drive Technology (ADT) ensures that the machines cutting speed changes according to load conditions. Auto-start Wireless System (AWS) can connect the machine to compatible dust extractors via Bluetooth, so that the job site stays cord-free and clean.
HS004G also has a soft grip, increasing comfort whilst on the job, twin LED lights with preglow and afterglow functions and it’s driving mode lamp also doubles as an overload alert.
High Work Amount And Capacity
Work amount on a full battery charge with BL4040 is about 310 pieces (SPF 2 x 10).
Max Cutting Capacity:
90°: 62,5 / 60 mm
45°: 44,5 / 43 mm
48°: 42 / 41 mm
Circular Saw XGT® 40V Max
Next generation circular saw, which offers excellent balance of high power and lightweight manoeuvrability. The saw reaches a No Load Speed (RPM) of 6000 and a max cutting capacity of 62,5 mm at a 90 degree angle. Its convenient features include an electric brake for maximum productivity and added safety.
FEATURES AND TECHNICAL DATA
Features
1. Twin LED job light
2. Electric brake
3. Overload alert using ADT lamp
4. Soft grip
5. Lock-off safety switch
Technical Specifications
Max Cutting Capacity: 90°: 62,5 / 60 mm, 45°: 44,5 / 43 mm, 48°: 42 / 41 mm
No Load Speed (RPM): 6000
Blade Diameter: 190 / 185 mm
Max Output: 1300 W
Weight /w BL4040: 4,7 kg
Dimensions (LxWxH) w/ BL4040: 337 x 210 x 290 mm
