Next Generation Impact Driver

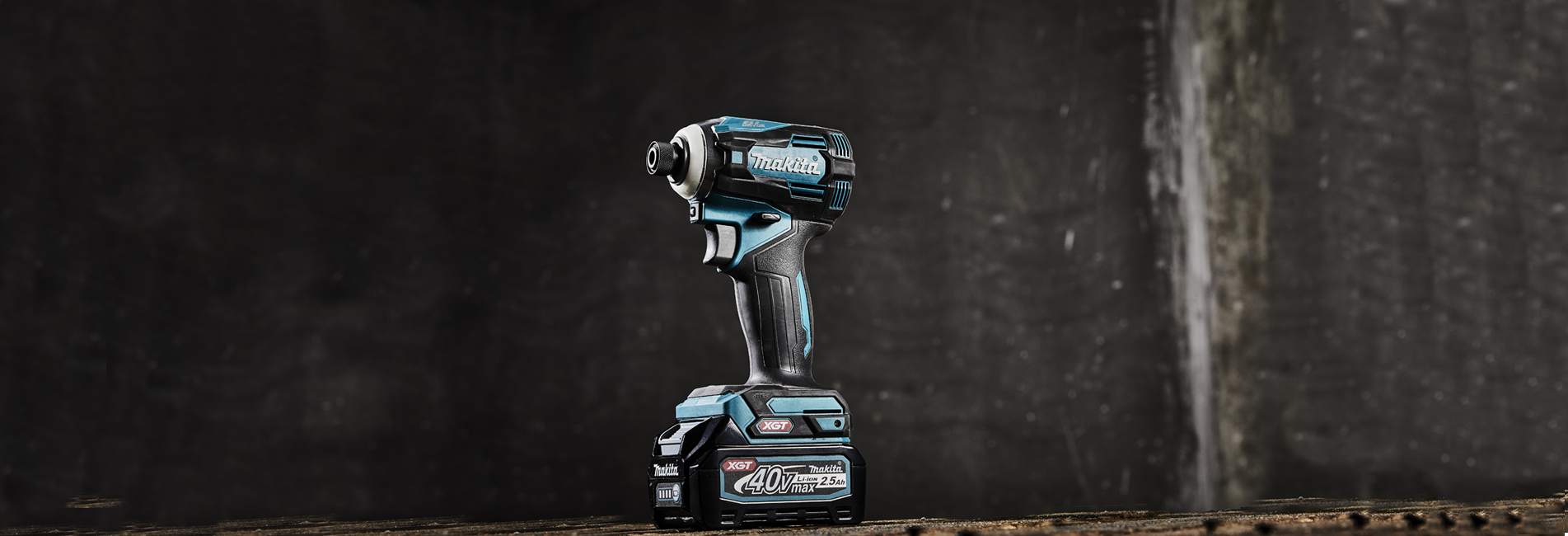

Impact Driver XGT® 40V Max
The TD001G is an efficient and powerful brushless Impact Driver featuring multiple operation modes and has an excellent ability to perform heavy-duty continuous tightening. Constant speed control maintains fastening torque by preventing the rotation speed reduction caused by a decrease in battery capacity. This machine is a genuine solution for high demand industrial applications.
Multiple Operation Modes And New Features
TD001G has 4-speed power selection and 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes). Improved bolt modes increase the convenience in tightening machine screws.
The machine also has a new one-touch bit installation. In order to prevent the bit from unexpectedly falling off, a more effective mechanism has been realised by increasing the spring load of the sleeve holding spring and by adding a coil spring to reduce the resistance against the insertion of the bit.
Delivers High Torque Of 220 Nm
Work amount on a full BL4025 (2.5Ah) battery charge
About 800 pcs Drove 65mm coarse thread screws
About 160 pcs Drove 120mm metal fastening screws
Impact Driver XGT® 40V Max
Powerful and durable brushless Impact Driver for professional use. Machine has 4-speed power selection and 6 Assist modes, one-touch 4-speed selector which provides precise fastening control for a wide range of applications and a quick-change memory mode that allows operator to rapidly change between two registered settings.
FEATURES AND TECHNICAL DATA
Features
1. Twin LED job light
2. One-touch bit installation, rigid anvil holder with ball bearings reduces bit wobbling
3. One-touch 4-speed selector which provides precise fastening control for a wide range of applications / Quick-change memory mode that allows operator to rapidly change between two registered setting.
4. Variable speed control by trigger
Technical Specifications
Capacity: Machine Screw: M4 - M8 / Standard Bolt: M5 - M16 / High Strength Bolt: M5 - M14 / Coarse thread (in length): 22 - 125 mm
Hex Shank: 6.35 mm (1/4")
No Load Speed (RPM): Max: 0 - 3,700 / Hard: 0 - 3,200 / Med: 0 - 2,100 / Soft: 0 - 1,100
Impacts Per Minute (IPM): Max: 0 - 4,400 / Hard: 0 - 3,600 / Med: 2,600 / Soft: 1,100
Fastening Torque (Nm): Max: 220 / Hard: 170 / Med: 50 / Soft: 20
Sound Pressure Level: 96 dB(A)
Sound Power Level: 107 dB(A)
Dimensions With Battery (L x W x H): BL4025: 120 x 86 x 245 mm / BL4040: 120 x 86 x 250 mm
Weight with battery: 1,7 - 2,0 kg
