Available version(s)
1 Available version

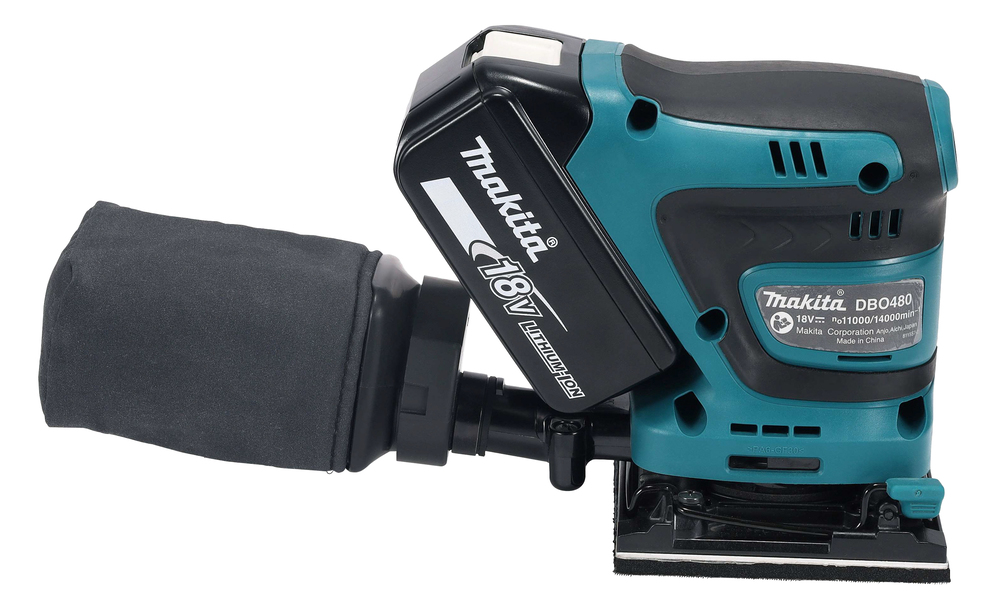

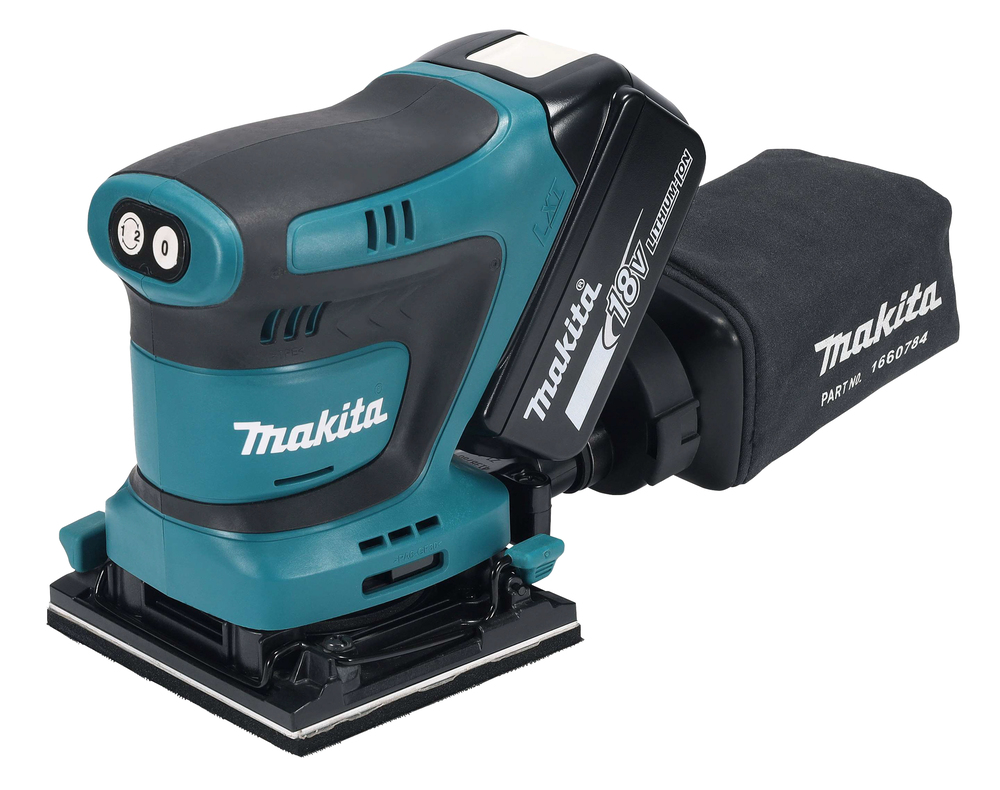

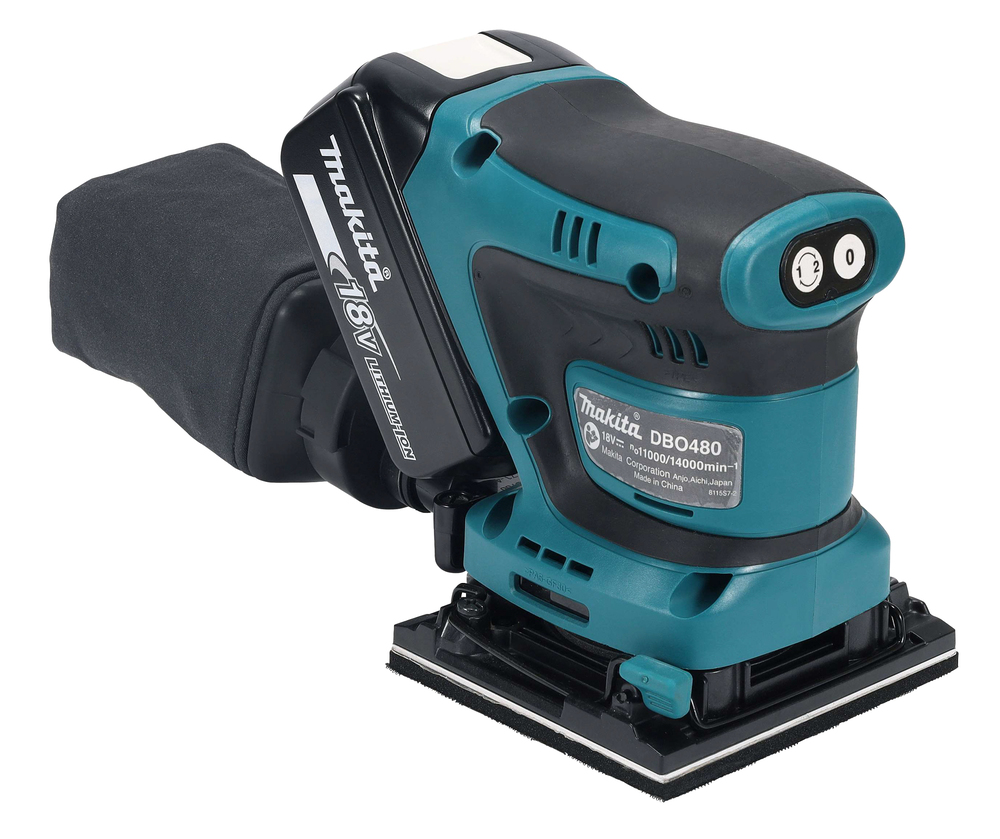

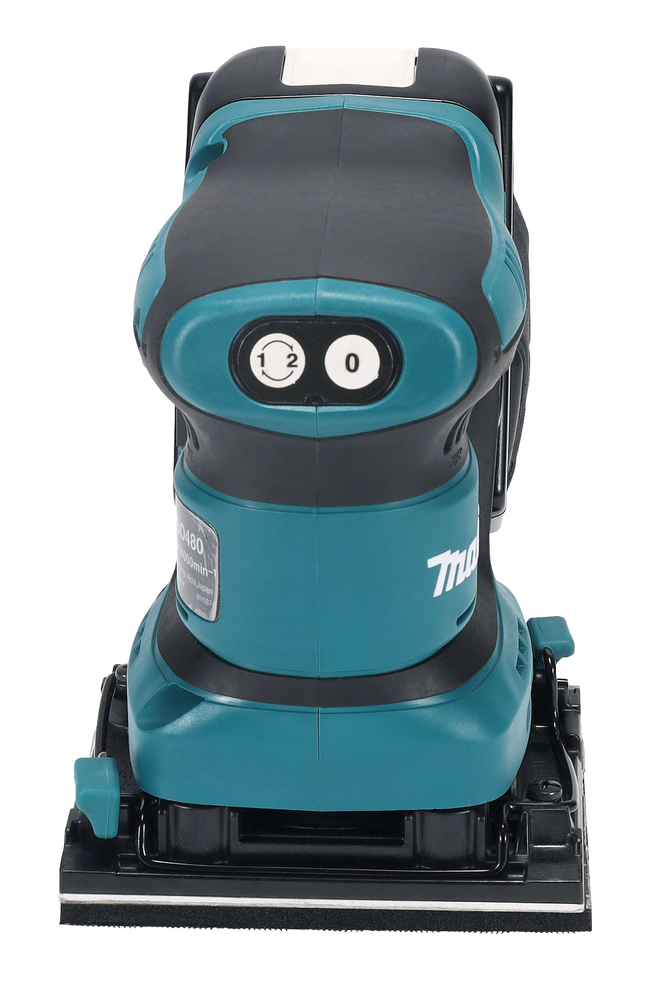

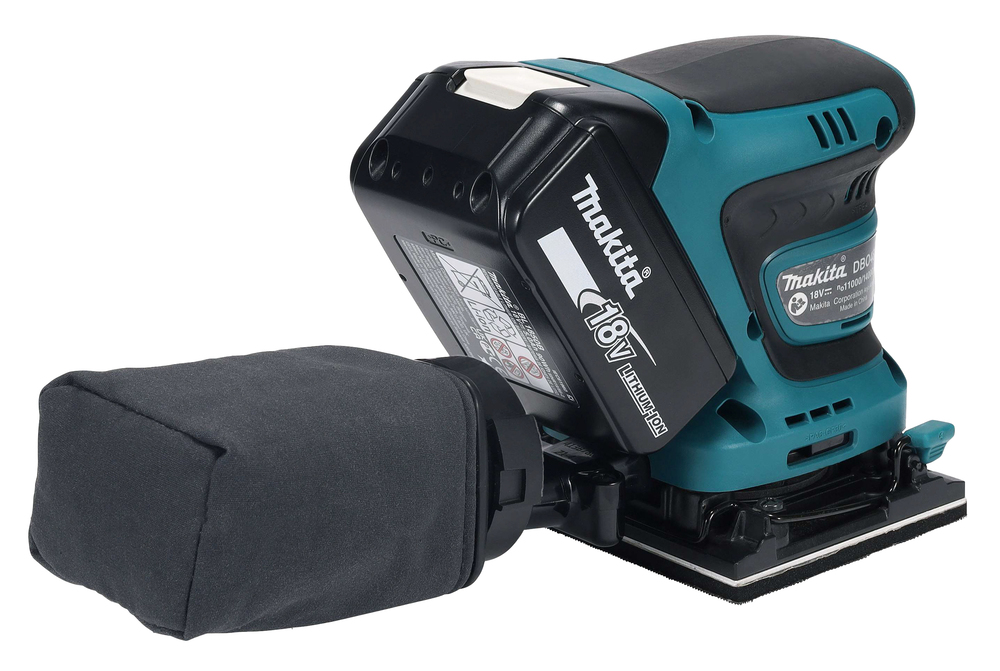

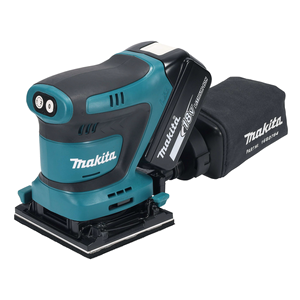

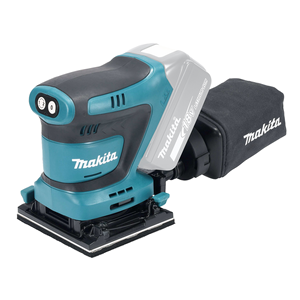

DBO480Z
Finishing Sander LXT®
LXT® Battery powered Finishing Sander for demanding use.
General
User benefits
- Hook & loop type abrasive paper can be used
- Compatible with various pads
- Large clamping lever for quick and easy paper installation
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Orbits per Minute11000 - 14000 min⁻¹
-
Sanding Orbit Diameter1,5 mm
-
Sound Pressure Level (LpA)75 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Tool weight with battery1,4 - 1,7 kg
-
Product Dimensions (L x W x H):171 x 112 x 152 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Max Output Power210 W
-
Strokes per Minute (SPM)22000 / 28000 min⁻¹
-
Vibrations per minute11000 / 14000 min⁻¹
-
Sanding Pad Dimensions112 x 102 mm
-
Dimensions of Clamped Abrasive Sheet114 x 140 mm
-
Pad size (triangle)94 x 94 mm
-
Vibration Level, Sanding Metal Plate≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor), Sanding Metal Plate1,5 m/s²
-
Product net weight1,0 kg
-
Vacuum cleaner connection Ø in / out17/22 mm
Symbols:
Electronic 2-speed
Hook & Loop
Dust Collection
