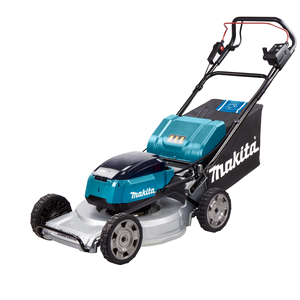

Lawn Mower LXT®

DLM533

18V X2 • 53 cm • 70 L

Model DLM533 is a cordless lawn mower with an aluminium deck and powered by two 18V LXT Li-Ion batteries in series.

Model DLM533 is a 530mm (21") cordless Self-Propelled lawn mower powered by two 18V LXT Li-Ion batteries in series.

Features cutting, collecting or mulching.

Centralised cutting height adjustment and ball-bearing wheels.

Two cutting modes are available (Standard mode and Low noise mode).

Equipped with rear discharge.

Recommended cutting area of 1,700 - 2,300 m².

Available version(s)

General

Technical info

Available version(s)

3 Available version

DLM533PG2 Lawn Mower LXT®

Barcode:

0088381724272

Display contents

Model DLM533 is a cordless lawn mower with an aluminium deck and powered by two 18V LXT Li-Ion batteries in series.

DLM533PT4 Lawn Mower LXT®

Barcode:

0088381897105

Display contents

Model DLM533 is a cordless lawn mower with an aluminium deck and powered by two 18V LXT Li-Ion batteries in series.

DLM533Z Lawn Mower LXT®

Barcode:

0088381897068

Display contents

Model DLM533 is a cordless lawn mower with an aluminium deck and powered by two 18V LXT Li-Ion batteries in series.


Lawn Mower LXT® DLM533
Rod, 6 Mm 327589-6
Socket Wrench 17 782210-8
Socket Wrench 13 mm 782212-4
Battery LXT® 5,0 Ah BL1850B
Battery LXT® 6.0 Ah BL1860B
Battery Charger LXT® DC18RD

General

User benefits

36V performance from two 18V batteries connected in series. The batteries are placed in parallel in separate battery docking stations.
Aluminium die-cast deck does not rust even if scratched or damaged
3 in 1 (Mowing / Grass collecting / Mulching)
10 cutting height settings from 20 mm to 100 mm
Grass box with grass level indicator
Electric brake for maximum productivity and increased operator safety
Large tyres enlarge the ground contact area to sustain higher performance in running over muddy or bumpy yard
Position-independent battery motor enables use on hillsides
Battery protection circuit protects against overloading, over-discharging and over-heating

Technical info

Technical specifications

Nominal Battery Voltage

2 x 18 V

Voltage LXT

Brushless Motor

No load speed

2300 - 2800 min⁻¹

Cutting height positions

Width of Mowing Deck

53,4 cm

Mowing Height

20 - 100 mm

Rear Wheel Diameter

23 cm

Front Wheel Diameter

23 cm

Collecting Box Capacity

70 L

Propelling Speed

2,5 - 5,0 km/h

Self-Propelled

Bio cutting

Sound Power Level (L_WA)

92,2 dB(A)

Sound Pressure Level (L_pA)

81,2 dB(A)

Noise Uncertainty (K Factor)

3 dB(A)

Vibration Level (3 axes)

≤ 2,5 m/s²

Vibration Uncertainty (K Factor)

1,5 m/s²

Tool weight with battery

42,8 - 46,7 kg

Product Dimensions (L x W x H):

1655 - 1740 x 590 x 990 - 1100 mm

Product dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.

- CXT® machines with 2,0Ah batteries

- LXT® machines with 6,0Ah batteries

- XGT® machines with 4,0Ah batteries

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)

Li-ion

Max Output Power

1600 W

RPM (Soft no load mode)

2300 / 2800 min⁻¹

2300 min⁻¹

Actual mowing area 6,0 Ah x 4

1700 - 2300 m²

If the product has different work modes Push Drive and Self-Propelled the value is shown as Self-Propelled – Push Drive. The result of mowing area depends on speed, blade, grass height and density and the cutting height.
