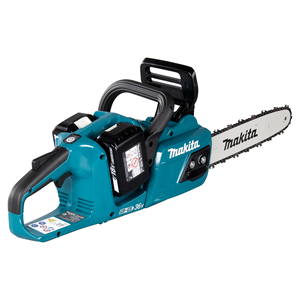

Chainsaw LXT ®
DUC3053 Available version
18V X 2 • 20 m/s • 30 cm / 12"
Powerful brushless saw with high chain speed for demanding applications
High performance saw brushless motor and 20 m/s chain speed for buildings and leisure. The high 36V is provided by two 18V LXT® batteries. The chain can be tensioned from the side and the saw has integrated clamping nuts.
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Support
Available version(s)
DUC305PG2
Chainsaw LXT®
Powerful brushless saw with high chain speed for demanding applications
DUC305PT2
Chainsaw LXT®
Powerful brushless saw with high chain speed for demanding applications
DUC305Z
Chainsaw LXT®
Powerful brushless saw with high chain speed for demanding applications
General
User benefits
- 36V performance from two 18V batteries connected in series. The batteries are placed in parallel in separate battery docking stations.
- Battery protection system automatically shuts off power when the battery level is low
- Adjustable automatic chain lubrication with large oil reservoir
- Compact and lightweight for reduced operator fatigue
- Captive nuts to prevent loss of nuts when replacing guide bar or saw chain
Technical info
Technical specifications
-
Voltage LXT
-
Nominal Battery Voltage2 x 18 V
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Max Output Power1100 W
-
Max. Chain Speed (No Load)20,0 m/s
-
Chain Pitch3/8 "
-
Chain Gauge0,043 "
-
Chain Gauge1,1 mm
-
Number of Drive Links46
-
Chain Oil Tank200 ml
-
Brushless Motor
-
chain bar length300 mm (12")
-
Vibration Level, Cutting Wood5,9 m/s²
-
Vibration Uncertainty (K Factor), Cutting Wood1,5 m/s²
-
Sound Power Level (LWA)98,7 dB(A)
-
Sound Pressure Level (LpA)87,7 dB(A)
-
Noise Uncertainty (K Factor)3,0 dB(A)
-
Product Dimensions (L x W x H):710 x 211 x 235 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Tool weight with battery4,6 - 5,3 kg
-
Product net weight3,3 kg
Symbols:
Variable Speed
Brake
Constant speed
Automatic Oiling
Chain Brake
