Available version(s)
2 Available version

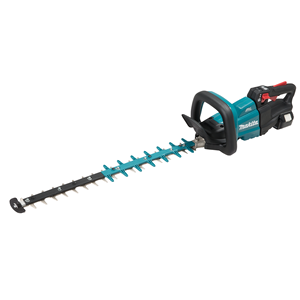

DUH601RT
Hedge Trimmer LXT®
Compact brushless brush cutter with specially sharpened blade
DUH601Z
Hedge Trimmer LXT®
Efficient brushless trimmer for home use
General
User benefits
- Brushless maintenance-free and long-life motor
- Soft start for smooth start-ups
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Variable speed
- Electric brake for maximum productivity and increased operator safety
- AVT (Anti-Vibration Technology) ensures extra-low vibration performance
- Double action switch for increased safety
- Constant speed control maintains constant speed under load
- Battery protection circuit protects against overloading, over-discharging and over-heating
Technical info
Technical specifications
-
Nominal Battery Voltage18 V
-
Brushless Motor
-
Voltage LXT
-
Length Of Blade600 mm
-
Sound Power Level (LWA)91 dB(A)
-
Sound Pressure Level (LpA)83 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Tool weight with battery4,0 - 4,3 kg
-
Product Dimensions (L x W x H):1121 x 225 x 192 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Max blade opening23,5 mm
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Max Output Power520 W
-
Strokes per Minute (SPM)2000 / 3600 / 4400 min⁻¹
-
Vibration Level, Hedge Trimming≤ 2,5 / ≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor), Hedge Trimming1,5 m/s²
-
Product net weight3,6 kg
-
Tooth Spacing35 mm
Symbols:
Variable Speed
Brake
Reversing
Electronic 3-Speed
Constant speed
Soft Start
Anti vibration
