Rotary Hammer
HR1840470 W • SDS-PLUS • 18 mm • 1.4 J
Efficient tool for drilling and impact drilling
A small and light rotary hammer compatible with SDS-PLUS bits. Suitable for drilling and impact drilling. Motor capacity of 470 W and speed can be adjusted between 0 and 2 100 min-1 from a switch. Impact energy of 1.4 J and optimal drilling range of 4 – 10 mm in concrete. Max. drilling capacity of 18 mm in concrete.
- Available version(s)
- General
- Technical info
- Related Products
- Parts diagram
- Dust Extraction
- Additional info
- Support
Available version(s)
2 Available version
HR1840/1
Rotary Hammer
Efficient tool for drilling and impact drilling
HR1840/2
Rotary Hammer
Efficient tool for drilling and impact drilling
General
User benefits
- The rubber coating on the handle ensures a firm working grip
- Right / left rotation
- Impact drilling, non-impact drilling and spike function
Technical info
Technical specifications
-
Continuous Input Power470 W
-
No load speed0 - 2100 min⁻¹
-
Impacts per Minute (IPM)0 - 4800 min⁻¹
-
Max. Drilling Diameter in Wood24 mm
-
Max. Drilling Diameter in Concrete18 mm
-
Max. Drilling Diameter in Steel13 mm
-
Optimum Drilling Diameter Range in Concrete4 - 10 mm
-
Impact Energy1,4 J
-
Adapted for SDS-PLUS bits
-
Power Supply Cord2,5 m
-
Sound Power Level (LWA)98 dB(A)
-
Sound Pressure Level (LpA)87 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Weight Without Cable2,4 kg
-
Product Dimensions (L x W x H):285 x 75 x 208 mmProduct dimensions are stated with a battery / batteries, if they affect the overall dimensions of the product.- CXT® machines with 2,0Ah batteries- LXT® machines with 6,0Ah batteries- XGT® machines with 4,0Ah batteries
-
Vibration Level, Hammer Drilling Into Concrete9,8 m/s²
-
Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete1,5 m/s²
Symbols:
Double Insulation
Variable Speed
Reversing
SDS-PLUS Shank
Torque limiter
Dust Collection

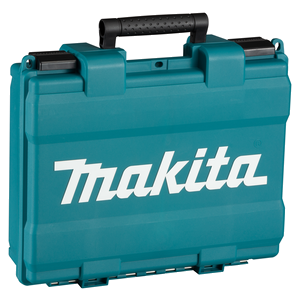

Carrying case
